Cleaning up the Cutless housing



The tool and the outcome. I just hope I haven't taken out too much material. I'll know when the new bearing arrives ...

Cutless Bearing Renewal

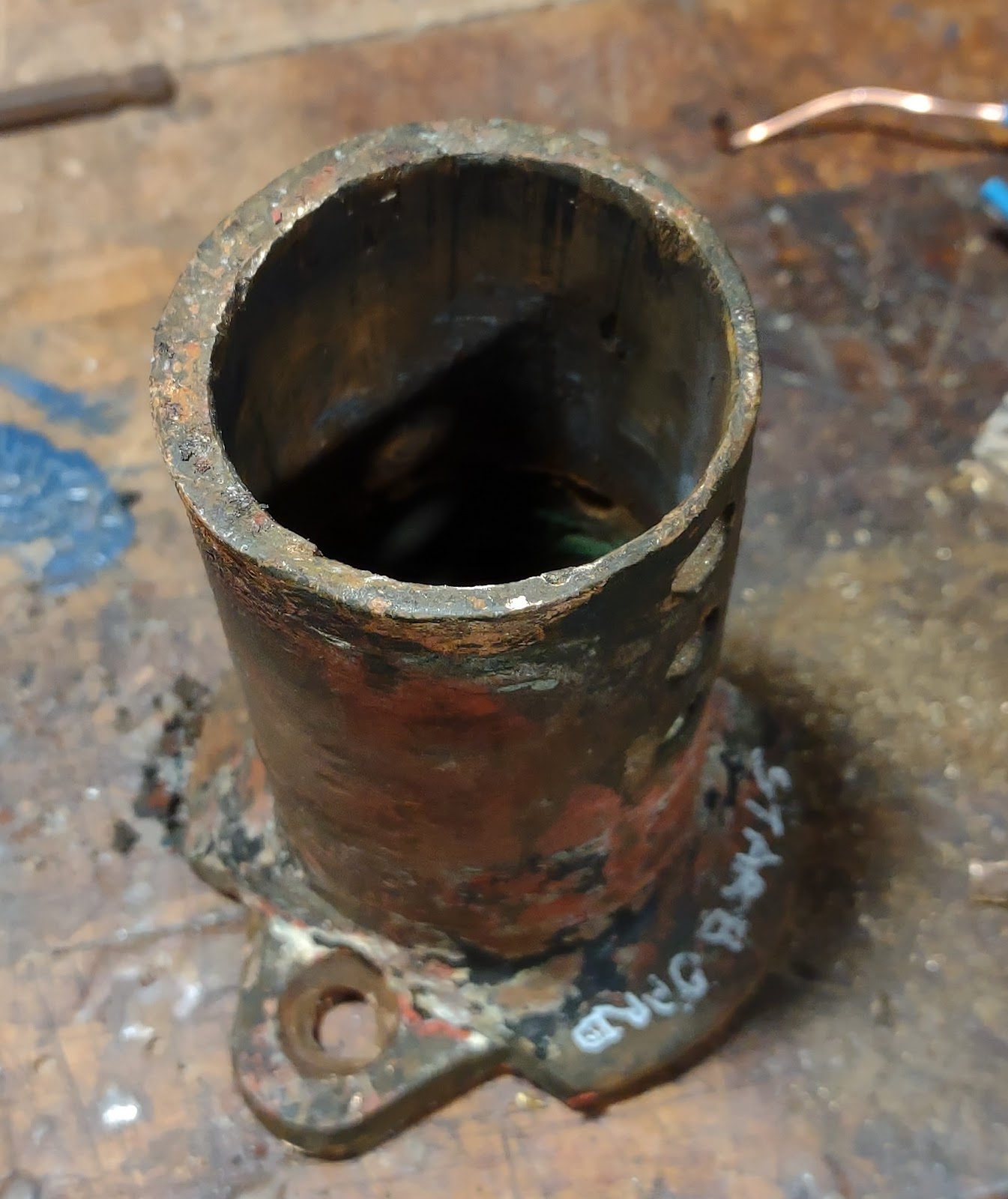

The left-hand picture shows the old Cutless bearing removed from the housing. Clearly, the installer had failed to get it the whole way in, and had just cut it off - it was only about two inches long. I suspect this was the same person who installed the propellor (see 'A thought-provoking prop failure...').

A curiosity, and further to the off-centre prop shaft:

The second picture shows that the bearing housing is clearly asymmetrical. This may not be associated with the prop-shaft alignment, of course. But ... ???

Somewhat inspired by the 'Sailing Brothers' ugly discovery when they checked their Cutless bearing prior to their Atlantic Crossing, I thought it was about time to have a look at Raasay's prop shaft. The bearing definitely needed replacing, and I was worried about what I might find - particularly since it looks as though the prop shaft can only be withdrawn with the engine removed (which is what the Brothers found).

Raasay's prop shaft isn't showing signs of cracks or fissures (to the naked eye), but there are definite signs of pitting and wear. And the taper has some damage (see 'A thought-provoking prop failure ...').

It might (false hope?) be easier to replace that I thought, though. With the prop and bearing removed, two things seem clear: the shaft is slightly angled to starboard, and there is a fair bit of movement (even without disconnecting the inboard end). I think I can get it out past the rudder skeg ...

If I can, I'll get quotes for replacement or repair. If not, I'll investigate getting the pitting repaired in situ.
